Controllers

Controllers are the possession layer of GS_Unit. A controller is the intelligence — human input or AI logic — that owns and drives a unit at any given moment. Because both player and AI controllers share the same possession interface, your unit entities do not need to know what is controlling them, and swapping control at runtime requires no special-casing.

For architecture details, component properties, and extending the system in C++, see the Framework API reference.

Contents

• The Possession Model
• Controller Types
• Player Controller
• AI Controller
• Switching Controllers at Runtime
• Querying Controller State
• Standby and Controllers
• Quick Reference
• Glossary
• See Also

The Possession Model

Breakdown

Every unit has exactly one controller at a time, or no controller at all. Possession is established by calling Possess on the unit and released by calling DePossess. The unit fires UnitPossessed on UnitNotificationBus whenever ownership changes so other systems can react.

Concept	Description
Possession	A controller attaches to a unit. The unit accepts input and movement commands from that controller only.
DePossession	The controller releases the unit. The unit halts input processing and enters a neutral state.
UnitPossessed event	Fires on UnitNotificationBus (addressed by entity ID) whenever a unit’s controller changes.
GetController	Returns the entity ID of the current controller, or an invalid ID if none.
GetUniqueName	Returns the string name assigned by the Unit Manager when this unit was spawned.

• The Basics: Controllers — Possession, input routing, and controller assignment.
• Framework API: Unit Controllers — Controller components, possession API, and C++ extension.

Controller Types

GS_Unit ships three controller components that cover the full range of typical game use:

Both GS_PlayerControllerComponent and GS_AIControllerComponent extend the base controller, meaning any code that works with the base controller interface works transparently with either type.

Player Controller

GS_PlayerControllerComponent registers itself with the Unit Manager on activation, making it visible to the game’s controller tracking system. It connects to the Input Data pipeline on the possessed unit so that raw input events are routed correctly as soon as possession is established.

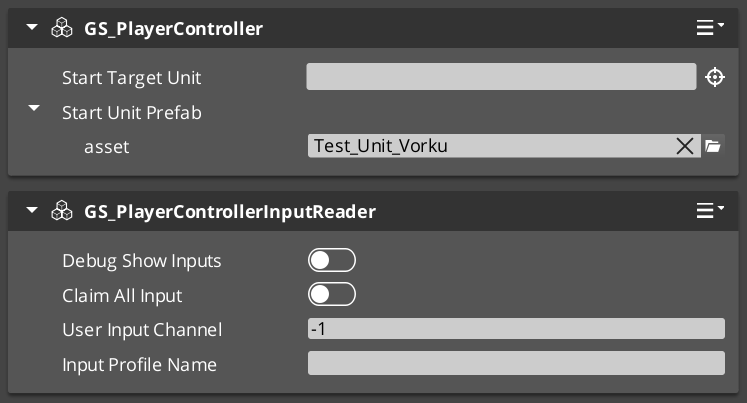

Setup

1. Add GS_PlayerControllerComponent to a controller entity (not the unit entity itself).
2. Ensure GS_InputDataComponent and GS_PlayerControllerInputReaderComponent are on the unit entity.
3. Call Possess to attach the controller to the target unit.

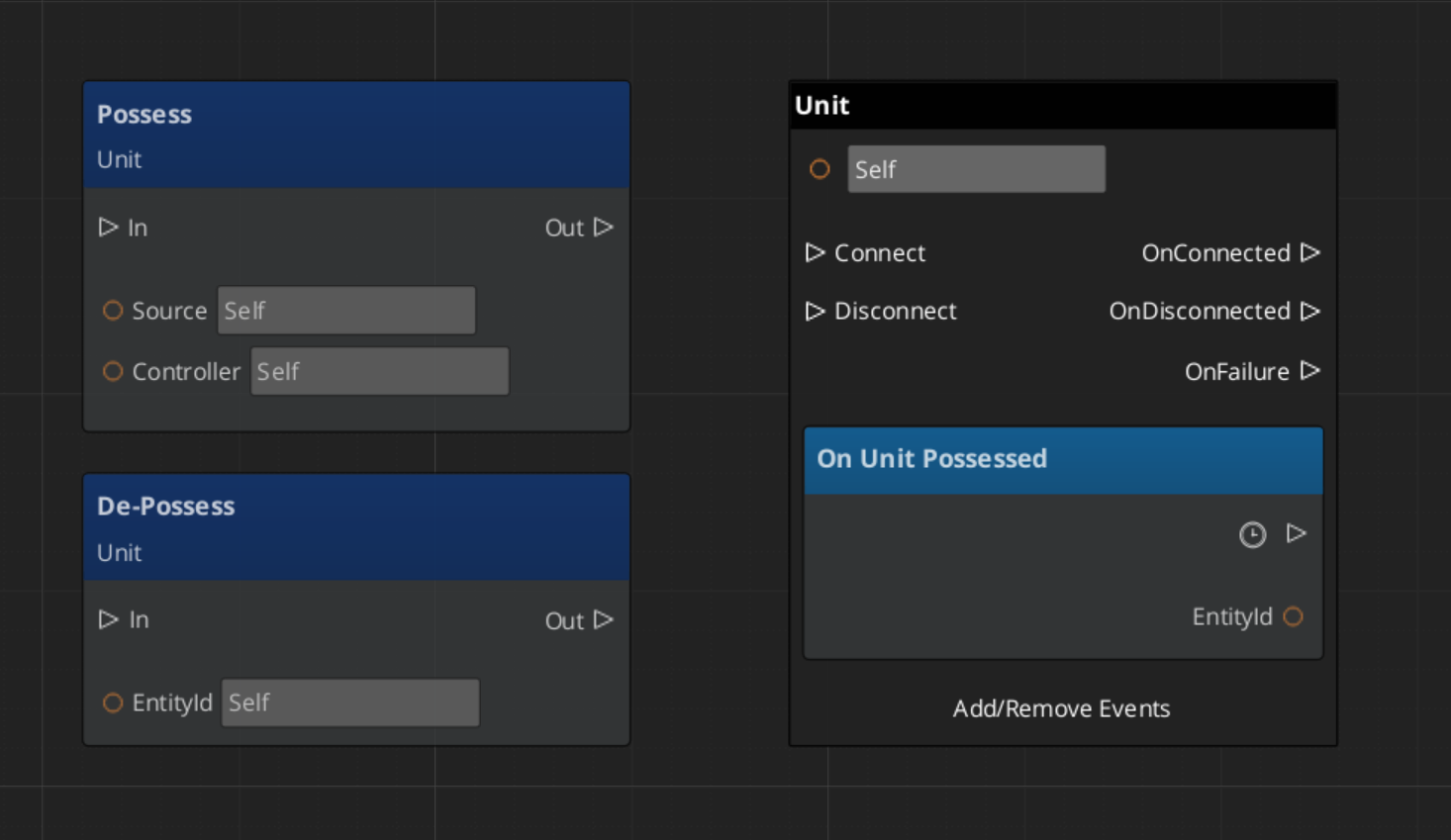

ScriptCanvas — Possessing a Unit

AI Controller

GS_AIControllerComponent gives AI logic the same possession interface as the player controller. An AI behavior system possesses a unit, then issues movement commands through UnitRequestBus or directly drives the unit’s Input Data component to simulate input. The unit processes those commands through the same mover stack it would use for player input.

ScriptCanvas — Handing a Unit to AI

// Called from your behavior tree or AI activation event when the NPC starts acting
[AI behavior activates]
    └─► [UnitRequestBus(unitEntityId) → Possess(aiControllerEntityId)]

[UnitNotificationBus(unitEntityId) → UnitPossessed(aiControllerEntityId)]
    └─► [AI logic begins issuing movement / action commands]

Switching Controllers at Runtime

Because possession is a simple attach/detach operation on the unit, switching from player to AI control (or back) is two calls:

[Trigger: cutscene starts, character incapacitated, etc.]
    └─► [UnitRequestBus(unitEntityId) → DePossess]
            └─► [UnitRequestBus(unitEntityId) → Possess(aiControllerEntityId)]

[Trigger: cutscene ends, character recovers, etc.]
    └─► [UnitRequestBus(unitEntityId) → DePossess]
            └─► [UnitRequestBus(unitEntityId) → Possess(playerControllerEntityId)]

The DePossess call ensures the previous controller’s input pipeline is disconnected before the new controller attaches, preventing stale input state from leaking between ownership changes.

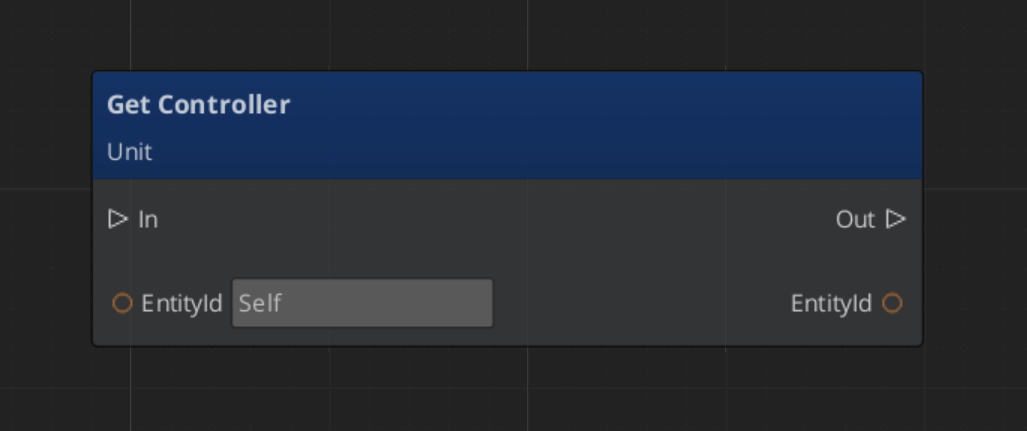

Querying Controller State

ScriptCanvas

Standby and Controllers

When the Unit Manager broadcasts EnterStandby, both player and AI controllers should stop issuing commands. Player controllers automatically halt input reading. AI controllers must be suspended by whatever behavior system drives them. On ExitStandby, normal command flow resumes.

Both events fire on UnitNotificationBus addressed by unit entity ID.

Quick Reference

Glossary

For full definitions, see the Glossary.

See Also

For the full API, component properties, and C++ extension guide:

• Framework API: Unit Controllers
• Framework API: GS_Unit

For related systems:

• The Basics: Unit Manager
• The Basics: Input Data
