Tug Fields pull the camera’s pose toward a designated point while the player (or any “proxy” entity) is inside a defined PhysX trigger volume. Use them for environmental cinematography — a railing that pulls the cam’s gaze toward a vista, a doorway that draws the cam toward what’s beyond, a hazard that draws attention as the player passes.

The system is built from three decoupled components — a volume, a source, and a proxy — plus one or two listener stages on the cam. Each piece is small; the combination is flexible.

For step-by-step composition recipes (vista pull, doorway glance, decoupled source / destination), see the recipes collection.

Camera Tug Configurations (Recipes) API

For the per-field reference and the per-tick algorithm, see the Framework API reference.

The single biggest authoring trap: Tug Fields require a specific PhysX collision-layer configuration. If you set up volumes and listeners but nothing happens, check the PhysX layer setup first (PhysX Layer Setup).



CameraTugVolumeComponent in the O3DE Inspector



Contents

The Three Components

CameraTugSourceComponent in the O3DE Inspector

ComponentWhere it livesWhat it does
CameraTugVolumeComponentLevel entity with a PhysX trigger collider on the TugField layerSpatial gate. Fires per-proxy enter / exit broadcasts when something on the TugProxy layer overlaps.
CameraTugSourceComponentEither the volume entity itself, OR a separate entity (for decoupled source / destination)Configures the geometry — proximity center, falloff radii, falloff curve, destination point.
TugFieldProxyComponentOn the player entity (or a child entity, or the cam entity)Lightweight marker. The PhysX trigger collider on this entity is what overlaps tug volumes.

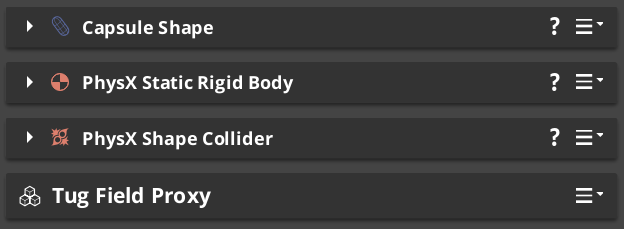

CameraTugProxyComponent on Player Unit



Plus on the Phantom Camera

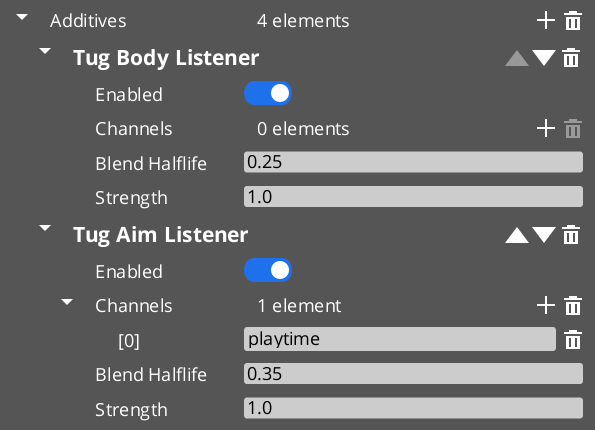

Tug Body & Aim Listener in Phantom Camera Additives Stages

Listener stageWhat it does
TugAimListenerSlerps the cam’s rotation toward the source’s destination point.
TugBodyListenerLerps the cam’s position toward the source’s destination point.

A cam can run either listener, both, or neither.

PhysX Layer Setup

The system filters tug-volume contacts at the PhysX layer level — there is no central registry, and no runtime entity-tag check. If the layer setup is wrong, nothing fires.

One-time project setup

  1. Open PhysX Configuration → Collision Layers.
  2. Create two new layers:
    • TugProxy
    • TugField
  3. Open Collision Groups. Create or edit a collision-group preset such that:
    • TugProxy overlaps only TugField (and not Default, Player, Static, etc.).
    • TugField overlaps only TugProxy.

This pair-only configuration ensures tug volumes fire triggers only for registered proxies, with no accidental cross-talk from normal-world physics.

Verify the pairing. It’s easy to leave TugProxy overlapping Default or Player by accident. If your cam jitters whenever the player walks through doorframes, that’s almost certainly the symptom — tug volumes are firing on the player’s main collider instead of the proxy collider.

Channel Filtering

The volume’s Channels field is a list of arbitrary string tags (“Cinematic”, “Combat”, “Environment”). The listener’s Channels field is the same. The listener responds only to volumes whose channels intersect with its own.

Empty channels on the listener = match all volumes.

Use channels when you have multiple kinds of tug fields in the same world — environmental pulls vs scripted-cinematic pulls — and you want some cams to respond only to certain kinds.

Tug-field channels are NOT instancing channels. Tug-field channels are these string tags. Instancing channels (in Channels & Instancing) are integer per-player viewpoint slots. Despite the shared word, the two systems are unrelated.

Tuning the Pull Strength

A few knobs interact:

KnobOnEffect
StrengthListenerOverall multiplier. 0.5 = half the full influence. Default 1.0.
Inner Weight / Outer WeightSourceThe proximity-to-influence falloff curve’s endpoints. Inner weight at the deadzone (full), outer weight at the boundary (typically 0).
Falloff CurveSourceShapes the ramp between outer and inner. Linear is even; EaseInOutQuadratic engages gently and disengages gently.
Blend HalflifeListenerSmoothing on the influence’s engagement and disengagement. Higher = slower ramps.

If the cam feels “jerky” entering or exiting the volume, raise Blend Halflife on the listener (try 0.5 or higher). If the cam pulls too aggressively at the deadzone, lower the listener’s Strength.

Pitfalls

Nothing fires

Almost always the PhysX layer setup. Verify:

  1. TugProxy and TugField layers both exist.
  2. The collision-group preset has them paired (and only paired).
  3. The player’s proxy collider is on TugProxy.
  4. The volume’s trigger collider is on TugField.

The cam yanks the moment the player enters the volume

Blend Halflife is too low (or zero). The listener’s dormant-to-engaged transition seeds at a zero-displacement point, but if the halflife is near zero the ramp is instant. Raise to 0.2–0.4.

The volume is “inert” — warning at startup

The source resolution failed. Either:

  • m_sourceEntity points at an entity that has no CameraTugSourceComponent. Fix the reference.
  • m_sourceEntity is empty AND the volume’s own entity has no CameraTugSourceComponent. Add one or set m_sourceEntity.

Tug volume and instancing channel confusion

If you’re in a multi-channel project and a tug volume’s m_channels says "P1", this does NOT bind the volume to channel 1. The string is just a tag — name it "Player1ExclusivePull" or use proper Channel Scope on the cam if you want per-player exclusivity.
