Dialogue UI

The Dialogue UI layer is the display side of the GS_Cinematics system. It receives events from DialogueSequencerComponent through DialogueUIBridgeComponent and routes them to the correct UI implementation — screen-space for HUD-style dialogue or world-space for speech bubbles above actors. Player choices are handled by selection components, and the TypewriterComponent reveals text character-by-character. BabbleComponent optionally plays per-character audio babble to give speakers a voice.

For architecture details, component properties, and extending the system in C++, see the Framework API reference.

Contents

• Component Overview
• DialogueUIBridgeComponent
• Dialogue Display Components
• Selection Components
• TypewriterComponent
• BabbleComponent
• ScriptCanvas Usage
• Quick Reference
• Glossary
• See Also

Component Overview

DialogueUIBridgeComponent

The Bridge component is the central connector between the sequencer and the UI. Place it on the same entity as DialogueSequencerComponent. It listens for OnDialogueTextBegin and OnDialogueSequenceComplete from the sequencer and forwards those events to whatever UI components are registered with it. It also receives player selection events from the selection UI and forwards them back to the sequencer.

This design keeps the sequencer and the display fully decoupled — swapping in a new UI implementation only requires registering it with the Bridge.

Dialogue Display Components

Screen-Space Text

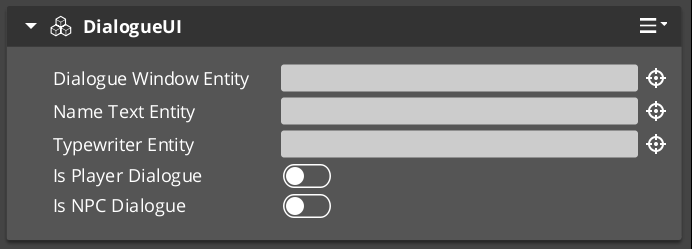

DialogueUIComponent handles HUD-style dialogue display. Add it to a UI canvas entity. It exposes the active TypewriterComponent so other systems can check typewriter state or force completion.

World-Space Speech Bubbles

WorldDialogueUIComponent extends DialogueUIComponent for world-space placement. It positions the dialogue panel above the speaking actor’s entity in 3D space. Use this for over-the-shoulder dialogue or conversations where the camera stays in the world rather than cutting to a UI overlay.

Selection Components

Screen-Space Choices

DialogueUISelectionComponent renders the player’s available choices as a list on the HUD. Each choice is backed by a DialogueSelectButtonComponent entity that is configured with option text and a selection index. When the player activates a button, it fires back through the Bridge to the sequencer.

World-Space Choices

WorldDialogueUISelectionComponent extends DialogueUISelectionComponent for world-space display. Choices appear positioned in 3D space rather than as a HUD overlay, useful for games with diegetic UI.

TypewriterComponent

The TypewriterComponent reveals a string one character at a time. It fires OnTypeFired for each character revealed and OnTypewriterComplete when the full string is displayed. Use ForceComplete to instantly reveal the remaining text — typically wired to a player skip input — and ClearTypewriter to reset the display to empty.

BabbleComponent

BabbleComponent pairs with TypewriterComponent to play short audio sounds for each character revealed, giving the impression of a speaker’s voice. Each actor has a SpeakerBabbleEvents record that maps them to a specific babble sound profile. The component returns the correct BabbleToneEvent for the current speaker via GetBabbleEvent, which is called by the typewriter on each OnTypeFired.

ScriptCanvas Usage

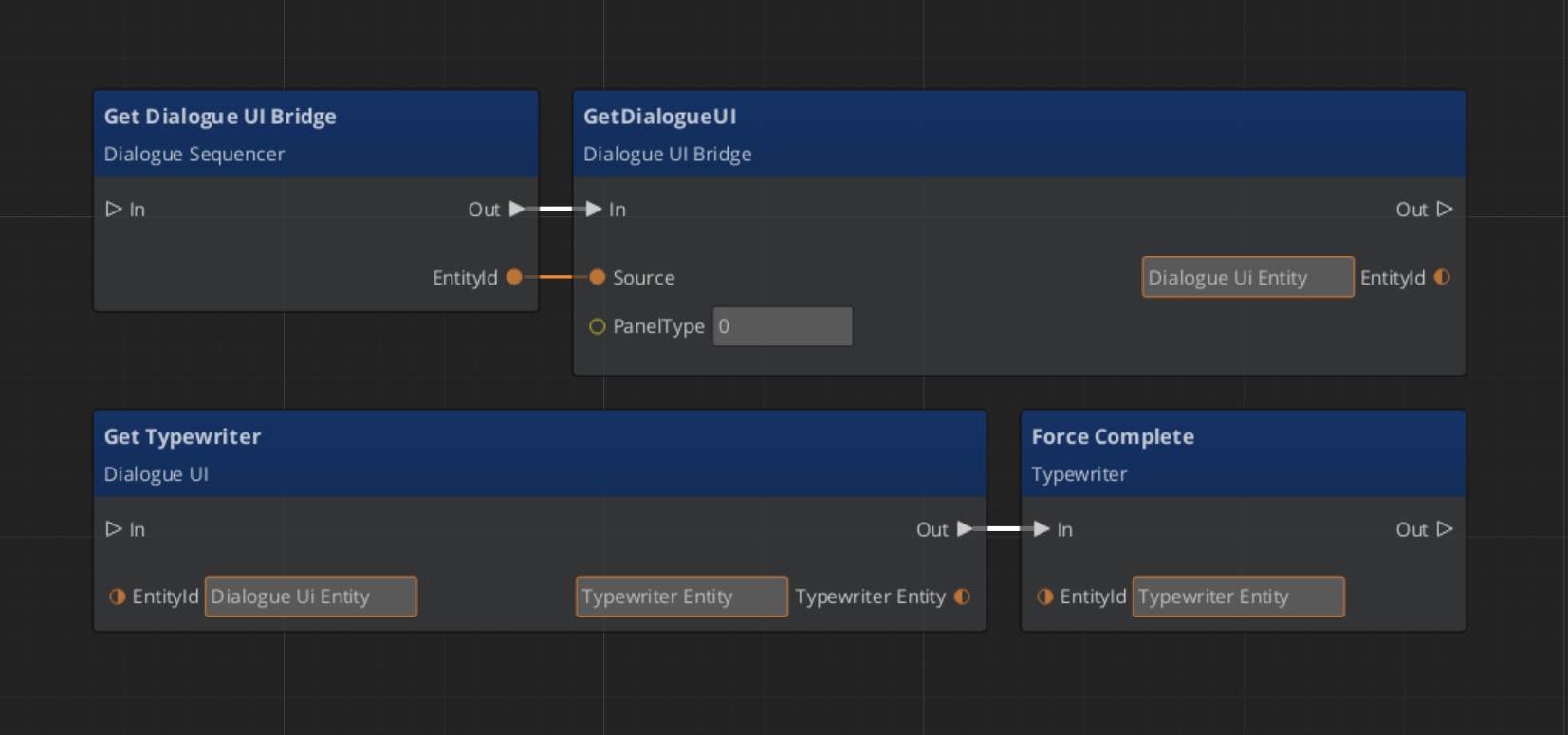

Forcing Typewriter Completion on Skip Input

Wire a player input action to ForceComplete so pressing a button instantly reveals the current line:

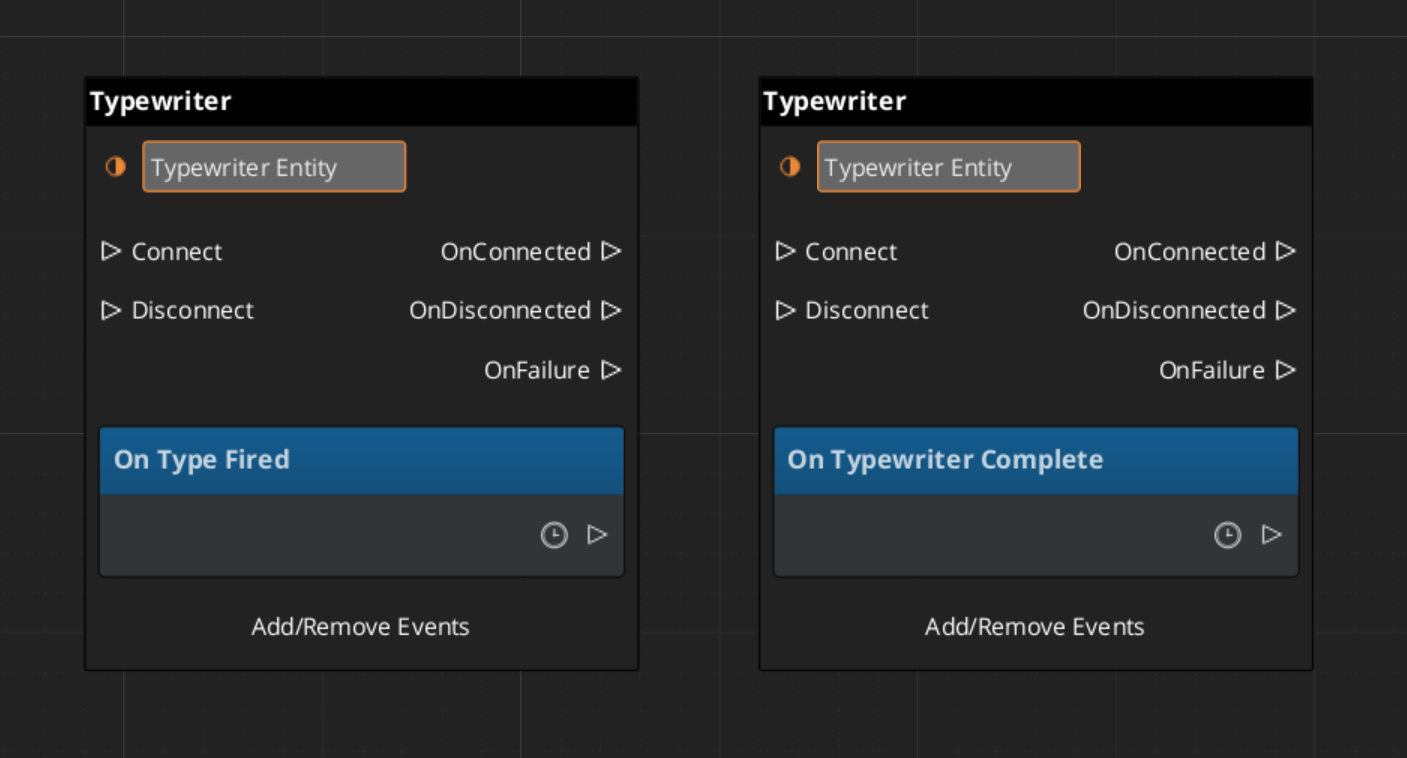

Reacting to Typewriter Events

Quick Reference

Glossary

For full definitions, see the Glossary.

See Also

For the full API, component properties, and C++ extension guide:

• Framework API: Dialogue UI

For related systems:

• The Basics: Dialogue
• The Basics: Cinematics Manager
