Page Navigation

For usage guides and setup examples, see The Basics: GS_UI.

The GS_UIPageComponent in the UI Editor, configured as a root page with a default child page assigned.

GS_UIPageComponent is the core navigation component of the GS_UI system. It replaces the legacy multi-tier Hub/Window/Page hierarchy with a single, unified component that handles all levels of UI navigation. A single GS_UIPageComponent can serve as a root canvas entry point, a mid-level container, or a leaf page – its role is determined entirely by configuration.

When m_isRoot is set to true, the page registers itself with the UI Manager as the root entry point for its canvas. Non-root pages are nested as children of other pages and managed through their parent’s child page system. This creates a single-tier model where any depth of navigation is achieved through recursive nesting of the same component.

Focus management uses push/pop stacks at each level. When a child page is focused, it is pushed onto its parent’s focus stack. Navigating back pops the stack and restores the previous child. The NavigationReturnPolicy enum controls whether returning to a page restores the last focused child or always resets to the default.

Required Companion Components

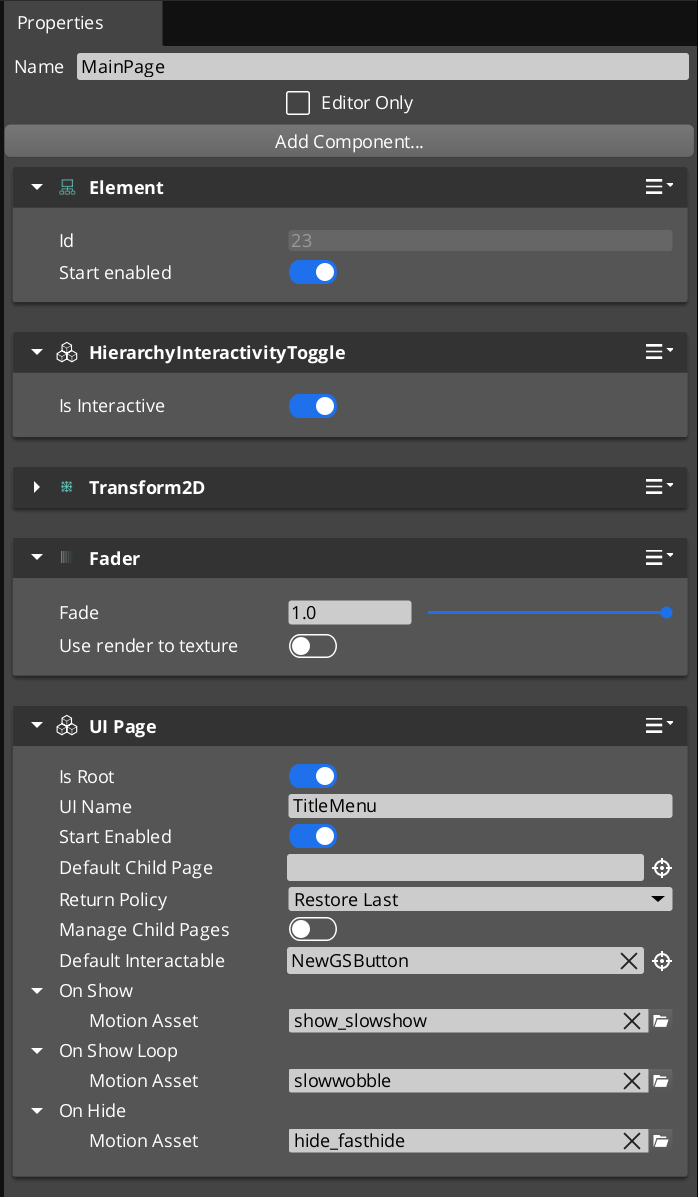

Root pages depend on two O3DE components placed on the same entity:

These are standard LyShine/LmbrCentral components — add them alongside GS_UIPageComponent on every root page entity.

Contents

• Required Companion Components
• How It Works
• Data Types
• Inspector Properties
• API Reference
• Usage Examples
• Companion Component Pattern
• See Also

How It Works

Root Pages

A root page (m_isRoot = true) is the entry point for a UI canvas. During activation, it calls RegisterRootPage(m_uiName, entityId) on the UIManagerRequestBus to register itself. The m_uiName field must match the name used when the canvas was loaded via LoadGSUI.

When m_startEnabled is true, the root page shows itself immediately upon registration. Otherwise, it remains hidden until the UI Manager calls FocusUI for its canvas name.

Child Page Management

When m_manageChildPages is true, the page acts as a container for child pages. Child pages register themselves with their parent during activation via RegisterChildPage(entity). The parent tracks all registered children and manages which one is currently visible and focused.

Each page maintains its own focus stack. When a child is focused, it is pushed onto the parent’s stack via PushFocus. PopFocus restores the previous child. The m_returnPolicy field controls behavior when navigating back to this page:

• RestoreLast – Restores the last child that was focused before navigating away.
• AlwaysDefault – Always resets to m_defaultChildPage, ignoring the focus history.

NavigateTo Algorithm

NavigateTo(forced) navigates the UI to show the calling page, regardless of where focus currently sits in the page tree. The algorithm works by building a path from the calling page up to the root, then cascading focus changes downward:

1. Build path – Walk up from the calling page to the root, collecting each ancestor into a path array.
2. Find divergence point – Starting from the highest ancestor, find the first level where the parent’s currently focused child does not match the path node. This is the “push point.”
3. Change pages – From the push point downward, call ChangePage at each level to switch the visible child to the path node.
4. Push focus – At the push point, call PushFocus to record the new child on the parent’s focus stack.
5. Cascade – Continue down the path to the target page, focusing each level.

This algorithm ensures that navigating to a deeply nested page correctly updates every intermediate level.

NavigateBack Algorithm

NavigateBack() walks up from the calling page to find the first ancestor with a non-empty focus stack, then pops it:

1. Walk up – Starting from the calling page, check each ancestor’s focus stack.
2. Pop focus – At the first ancestor with a non-empty stack, call PopFocus to restore the previous child.
3. Fallback to UI Manager – If no ancestor has a non-empty stack (the user has navigated all the way back to the root), call NavLastUI() on the UIManagerRequestBus to return to the previous canvas in the global focus stack.

Show/Hide Transitions

Each page can have three UiAnimationMotion assets assigned:

• m_onShow – Played when the page becomes visible.
• m_onShowLoop – Played in a loop after the show animation completes.
• m_onHide – Played when the page is hidden.

These motion assets drive LyShine property animations (position, scale, rotation, alpha, color) to create smooth transitions between pages.

Data Types

NavigationReturnPolicy

Controls how a page restores child focus when navigated back to.

FocusEntry

A single entry in a page’s focus stack.

Inspector Properties

API Reference

Request Bus: UIPageRequestBus

Commands sent to a specific page by entity ID. Addressed bus – addressed by EntityId.

User-Facing Methods

These methods are intended to be called from gameplay code, ScriptCanvas, or other UI components to drive navigation.

Internal Methods

These methods are used internally by the navigation system. They can be called from C++ when building custom navigation behavior, but are not typically called from ScriptCanvas.

Usage Examples

C++ – Navigating to a Specific Page

#include <GS_UI/GS_UIBus.h>

// Navigate to a specific page entity, forcing the transition
GS_UI::UIPageRequestBus::Event(
    settingsPageEntityId,
    &GS_UI::UIPageRequestBus::Events::NavigateTo,
    true  // forced
);

C++ – Navigating Back

// Navigate back from the current page
GS_UI::UIPageRequestBus::Event(
    currentPageEntityId,
    &GS_UI::UIPageRequestBus::Events::NavigateBack
);

C++ – Switching Between UI Canvases

// From the title screen, switch to the gameplay HUD
GS_UI::UIPageRequestBus::Event(
    titlePageEntityId,
    &GS_UI::UIPageRequestBus::Events::ChangeUI,
    AZStd::string("GameplayHUD"),
    true,  // takeFocus
    true   // hideThis
);

Companion Component Pattern

GS_UIPageComponent handles navigation structure, but it does not contain game-specific logic. The intended pattern is to place a companion component on the same entity as the page component. The companion component listens for page show/hide events and drives game-specific behavior (populating lists, starting timers, sending analytics events).

This separation keeps the navigation system generic and reusable while allowing each page to have unique behavior through its companion.

See Also

For component references:

• UI Manager – The singleton that owns canvases and drives the global focus stack
• UI Animation – Motion assets used for page show/hide transitions

For conceptual overviews and usage guides:

• GS_UI Overview – Full gem overview and installation
• The Basics: UI – Scripting-level overview
