Body Stage Variants

The Body stage owns state.position for each tick. Five variants ship with GS_PhantomCam — each with its own kinematic model (orbit math, spring damping, path interpolation, band response, etc.). All variants share a target-routing front-end via the CamTargetMode enum documented in Stage Pipeline. Per-variant state inheritance support is summarized below; see State Inheritance for the full protocol.

Contents

• DefaultFollowBody
• OrbitBody
• DynamicOrbitBody
• LeadingFollowBody
• TrackBody
• Cross-Variant Summary
• See Also

DefaultFollowBody

Simple follow camera. Tracks a target at an authored offset, position-space spring damped.

Kinematic model

destPos        = targetTM.translation + ApplyOffset(offset, targetTM, isRelative)
state.position = SimpleSpringDamperExact(m_idealPosition, m_springVelocity,
                                         destPos, halflife, dt)

Spring runs against an internal m_idealPosition per the decoupled-ideal pattern. On ctx.snapThisFrame, m_idealPosition = destPos directly.

Authored fields

State inheritance

None. Default IBodyStage virtuals return false. Inheritance into a Default Follow falls through to the Blend Profile’s visual bridge.

OrbitBody

Fixed orbital pose around the target — authored yaw, pitch, and radius, no input. The “static orbit cam.” Successor to the retired StaticOrbit_PhantomCamComponent.

Kinematic model

destPos     = targetTM.translation + offset
pitchRad    = clamp(degToRad(m_orbitPitchDeg), -89°, +89°)
yawRad      = degToRad(m_orbitYawDeg)

orbitOffset = m_orbitRadius * (cos(pitch)*cos(yaw), cos(pitch)*sin(yaw), sin(pitch))
destPos    += orbitOffset

state.position = SimpleSpringDamperExact(m_idealPosition, m_springVelocity,
                                         destPos, m_halflife, dt)

The cached pivot m_lastPivot (the post-offset, pre-orbit pivot point) is published through TryGetPoseSnapshot for inheritance into orbit-style adopters.

Authored fields

State inheritance

DynamicOrbitBody

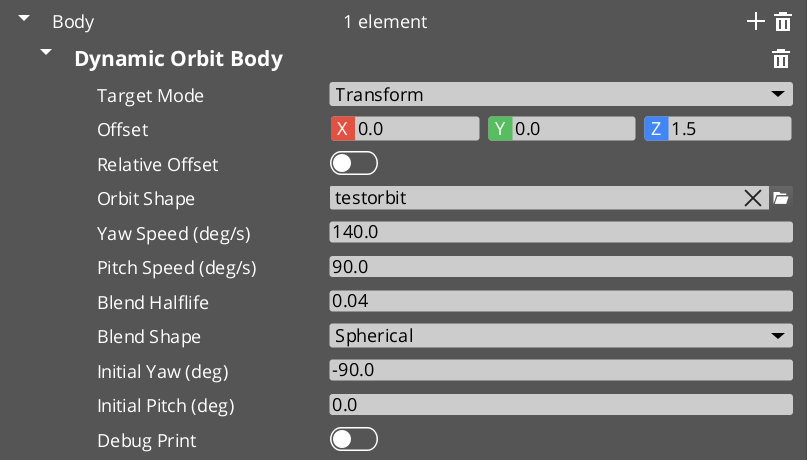

Input-driven orbit camera around a target, shaped by a CameraOrbitShape (.camorbit) asset. The current go-to body for orbit-style player cams. Successor to the retired OrbitCam variant.

Unified drive model

The stage holds target angles (m_targetYaw, m_targetPitch) and damps the cam’s position toward whatever those angles imply on the orbit surface via the Orbital Solver Utility. Target angles are written by:

1. Snap seeding (m_initialYawDeg / m_initialPitchDeg) on first activate or ctx.snapThisFrame.
2. External scripted calls via DynamicOrbitBodyRequestBus::SetOrbit(yawRad, pitchRad).
3. Per-tick input integration — when an OrbitInputProvider bus handler is bound to the cam’s entity (the Camera Input Reader component), the body polls input deltas and integrates them. Gated on ctx.hasFocus || ctx.alwaysUpdate || ctx.blendingOut.

No drive-mode enum. Multiple writers compose; last write wins per tick; solver damping shapes the visual response.

Static-orbit behavior is also achievable here by authoring initial angles and not installing an input provider — target angles never change, solver damps once, holds. The separate OrbitBody class is retained for the explicit “static shot” identity case.

Kinematic model

// 1. Resolve pivot (post-offset target).
pivot = targetTM.translation + offset
m_lastResolvedPivot = pivot   // cached for inheritance Get

// 2. Inheritance consume (if pending). Sets m_targetYaw / m_targetPitch /
//    m_idealPosition. See [State Inheritance].

// 3. Snap handling — reset target angles to authored seeds on
//    ctx.snapThisFrame (unless inheritance just consumed).
if (ctx.snapThisFrame && !consumedAdoption):
    m_targetYaw   = degToRad(m_initialYawDeg)
    m_targetPitch = degToRad(m_initialPitchDeg)

// 4. Input integration (if cam has an OrbitInputProvider AND
//    ctx.hasFocus || alwaysUpdate || blendingOut).
yawDelta, pitchDelta = poll OrbitInputProvider
m_targetYaw   += yawDelta   * degToRad(m_yawSpeed)   * dt
m_targetPitch += pitchDelta * degToRad(m_pitchSpeed) * dt
m_targetYaw   = WrapYawToPi(m_targetYaw)
m_targetPitch = clamp(m_targetPitch, kPitchAtLow, kPitchAtHigh)

// 5. Orbit shape evaluation.
shapePoint = m_orbitShape->EvaluateAtPitch(m_targetPitch)  // (radius, height)
desiredPos = pivot + (shapePoint.radius * cos(m_targetYaw),
                     shapePoint.radius * sin(m_targetYaw),
                     shapePoint.height)

// 6. Solver damping via BlendPositionAroundPivot.
alpha = HalflifeAlpha(m_blendHalflife, dt)
m_idealPosition = GS_Core::Math::BlendPositionAroundPivot(
                    m_idealPosition, desiredPos, pivot,
                    alpha, m_blendShape, +Z)

state.position = m_idealPosition

Authored fields

Companion bus

DynamicOrbitBodyRequestBus (per-entity, addressed by cam EntityId):

virtual void  SetOrbit(float yawRad, float pitchRad) = 0;
virtual float GetCurrentTargetYaw()   const = 0;
virtual float GetCurrentTargetPitch() const = 0;

SetOrbit uses ShortestYawTarget to keep the damping arc bounded — prevents the solver taking the long way around for distant yaw writes.

State inheritance

Full Get + Adopt. Two derivation paths:

Both seed m_idealPosition = snap.worldPos and set consumedAdoption = true so subsequent snap-clobber logic is gated.

Get publishes m_idealPosition, world-forward toward cached pivot, pivotPos = m_lastResolvedPivot, pivotEntity = m_lastResolvedPivotEntity, and direct authored m_targetYaw / m_targetPitch + angularStateValid = true.

Init contract

Init() overrides to force-load m_orbitShape via AssetManager::GetAsset + BlockUntilLoadComplete per the asset-fresh-load pattern. Without this, in-editor .camorbit edits don’t propagate to the runtime body until restart.

LeadingFollowBody

Held-position cam that slides along an arc around the target only when the target leaves an authored distance band. Leading-look / “Gears of War”-style follow — heading-agnostic, so abrupt 180° turns by the target don’t swing the cam.

Kinematic model

distXY = horizontal distance between cam and target (at offset's height)

if inner < distXY < outer:
    hold position   // cam stays put within the band
else if distXY > outer:
    slide toward target along an arc until just inside outer
else if distXY < inner:
    slide away from target along an arc until just outside inner

// Slides use the orbital solver around the target as pivot — cam arcs
// around the target during band response rather than cutting through.

// Z tracking: independent linear-halflife lowpass on the Z axis, mirroring
// target Z without affecting XY band math.

// Optional center-on-heading: after a configurable stillness delay, cam arcs
// around target to settle behind (or off-axis behind via m_idleYawOffsetDeg)
// at the current radius.

Authored fields

State inheritance

Authoring gotcha. If the matched Blend Profile entry has m_inheritState unchecked, the snap-on-activation block fires instead of the consume block. Symptom: “cam orients behind the player’s travel direction regardless of source facing.” The fix is data-side — check the inherit flag in the asset.

TrackBody

Spline-bound dolly camera. Slides along a SplineComponent, interpolating two authored TrackBodyData blocks (start + end) by spline position (globalT 0..1). Successor to the retired Track_PhantomCamComponent.

Per-endpoint data blocks carry offset, halflife, and an optional FoV override.

Kinematic model

// Resolve nearest spline point to current target.
splineHit = spline->FindClosestWorldPoint(targetTM.translation)
globalT   = splineHit.normalizedDistance   // 0..1 along spline

// Lerp data blocks.
offset    = lerp(m_startData.offset,   m_endData.offset,   globalT)
halflife  = lerp(m_startData.halflife, m_endData.halflife, globalT)
fovDest   = (m_endData.fieldOfView > 0)
            ? lerp(m_startData.fieldOfView, m_endData.fieldOfView, globalT)
            : 0

// Position = spline point + offset (relative or world basis).
destPos        = splineHit.worldPoint + ApplyBasis(offset, splineTangent, isRelative)
state.position = SpringDamp(m_idealPosition, m_springVelocity, destPos, halflife, dt)

// Push FoV to owner via WriteLensFieldOfView so Cam Core picks it up live.
if (fovDest > 0):
    ctx.owner->WriteLensFieldOfView(fovDest)

Authored fields

TrackBodyData

struct TrackBodyData {
    AZ::Vector3 m_offset            = (0, 0, 0);
    bool        m_offsetIsRelative  = false;
    float       m_halflife          = 0.1f;
    float       m_fieldOfView       = 0.0f;   // 0 = don't push lens
};

State inheritance

Spline resolution timing

EnsureSplineResolved is lazy — runs on first Evaluate with a valid target. Caches m_spline and m_splineEntity so subsequent ticks don’t re-look-up.

Cross-Variant Summary

See Also

• Stage Pipeline — per-tick orchestration, interfaces, conventions.
• Aim Stage Variants
• Additive Stage Variants
• State Inheritance — the per-body Get / Adopt protocol.
• Orbit Profiles — .camorbit asset consumed by DynamicOrbitBody.
• Orbital Solver Utility — math primitive used by DynamicOrbitBody and LeadingFollowBody.
• Group Targets — CamTargetMode::GroupTarget.
