Phantom Cameras

A Phantom Camera is a single entity component — GS_PhantomCameraComponent — that publishes a candidate camera pose every tick. It holds priority, target routing, lens, channel scope, and snap / focus / blendingOut state, plus the stage pipeline slot that authors fill in to give the cam its behavior. Phantom cameras do not render anything themselves; they register with the Cam Manager and the Cam Core drives the engine view toward whichever phantom currently wins arbitration.

Where previous versions of GS_PhantomCam shipped separate components for each behavior (clamped-look, static-orbit, spline tracking, etc.), all of those behaviors now live as stage variants on the single base component. An author picks a Body stage, an Aim stage, and zero-or-more Additive stages from the type-picker, and the same GS_PhantomCameraComponent becomes a follow cam, an orbital cam, a tracking dolly, a third-person shoulder cam, or a cinematic stinger depending on which stages are slotted.

For usage guides and setup examples, see The Basics: GS_PhantomCam.

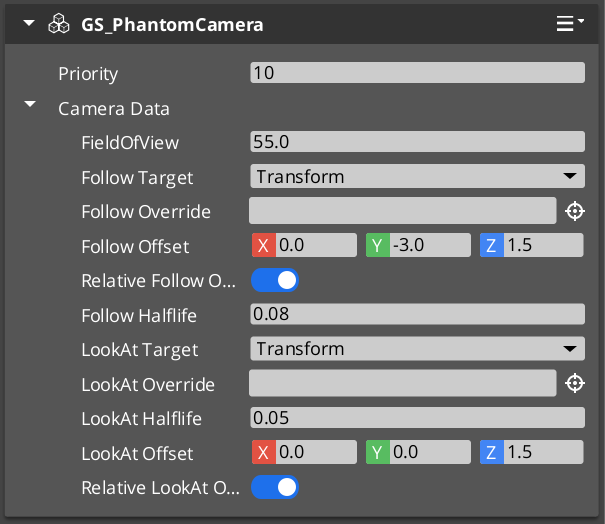

The Phantom Camera component in the Entity Inspector.

Contents

• How It Works
• Stage Pipeline
• Channel Scope
• Execution States
• Staged Poses
• Setup
• PhantomCamData Structure
• API Reference
• Camera Behavior Types
• Usage Examples
• Extending Phantom Cameras
• See Also

How It Works

Priority-Based Selection

Every phantom camera has a base priority. The camera with the highest effective priority (base plus any active influences) wins arbitration within its channel. You can control which camera wins through several strategies:

• Raise priority — Set the desired camera’s priority above all others via SetCameraPriority.
• Disable / Enable — Call DisableCamera to drop the camera’s effective priority, EnableCamera to restore it.
• Change priority directly — Call ChangeCameraPriority on the Cam Manager bus.
• Influence — Add temporary priority modifiers through Influence Fields without touching base priorities.

Follow and Look-At

Follow and look-at behavior is no longer hardcoded on the component; it is provided by the Body and Aim stages slotted on the pipeline. Each tick the cam threads a CameraState accumulator through:

Body → Aim → Reposition additives → Noise additives → Finalize

• The Body stage writes state.position — different variants implement spring-damped follow, orbital sweep, spline traversal, etc.
• The Aim stage writes state.rotation — including angle-clamped look, head-tracking look, etc.
• Additive stages correct or perturb the pose without poisoning Body / Aim ideals.

See Stage Pipeline for the per-tick contract.

Camera Data

Each phantom camera stores its lens and target configuration in a PhantomCamData structure. This data is read by the Cam Core during blending and by stages during evaluation. The stage list lives separately on the component (m_bodySlot, m_aimSlot, m_additives).

Stage Pipeline

Each phantom camera is a container for stages. The component owns three slots:

Stages are reflected polymorphic types — derived from IBodyStage / IAimStage / IAdditiveStage, not AZ::Component. The editor type-picker enumerates all registered derivations from the SerializeContext class hierarchy, so other gems can extend the catalog cleanly.

Per-tick orchestration (run by the component each OnTick):

EvaluateCamTick — eligibility check (see Execution States)
   │ tickActive == true
   ▼
EvaluatePose
   ├─► Build CameraContext (target, deltaTime, lifecycle flags, snapThisFrame)
   ├─► IBodyStage::Evaluate    → writes state.position, state.bodyAnchor
   ├─► IAimStage::Evaluate     → writes state.rotation, state.lookAtPoint
   ├─► snapshot m_desiredPose
   ├─► For each Reposition additive → corrects state
   ├─► snapshot m_stablePose
   ├─► For each Noise additive → perturbs state
   ├─► snapshot m_finalPose
   ├─► Resolve cached pivot (state.lookAtPoint, else target world position)
   └─► Commit m_finalPose to TransformBus + apply lens to engine Camera component

See Stage Pipeline reference for the full per-stage contract, init / asset-fresh-load semantics, and variant catalogs.

Channel Scope

Each phantom camera authors a CamChannelScope that decides how it participates in the channel system:

enum class CamChannelScope : AZ::u8 {
    Local,         // Default. Registers to ancestor stamp's channel, or channel 0 if no stamp.
    AllChannels,   // Stamped: per-rig-instance natural duplicate. Unstamped: warns + falls back.
    TrueUnique,    // Single instance. Either bound to a specific channel or shared across all.
};

Author recipes:

• Cam inside a rig prefab — leave as Local. Each spawned rig instance hosts its own copy via the stamp-walk path.
• Per-player tailored broadcast cam in the level — AllChannels (works naturally for in-rig cams; out-of-rig duplication is deferred).
• Hero-perspective cam for a specific player — TrueUnique + m_boundChannelId = N.
• Shared cinematic collapse cam — TrueUnique + advanced + m_allChannelsShare = true. Paired with a Group Target, this triggers OnAllChannelsActivatedSharedCam when every channel selects the cam.

See Channels & Instancing for the resolution algorithm.

Execution States

A phantom camera carries three boolean states that gate whether it ticks each frame. The tick-eligibility predicate is:

tickActive = m_hasFocus || m_alwaysUpdate || m_blendingOut

When tickActive is false the cam is fully dormant — its stages don’t run, its body doesn’t integrate input, its damping doesn’t advance.

The three flags

snapThisFrame and m_snapNextEval

When a cam should bypass damping for a single tick — to commit its ideal pose directly without spring lag — the component sets m_snapNextEval = true. The next Evaluate consumes the flag, sets ctx.snapThisFrame = true, and resets m_snapNextEval.

m_snapNextEval is set on:

• Focus gain — m_hasFocus flipped from false to true (gated on focus specifically; blend-out wake does NOT trigger snap, which would otherwise yank an outgoing cam back to its initial yaw).
• SetCameraTarget(validEntity) — new follow target.
• SetTargetFocusGroup(validEntity) — new group target.
• QueueSnapCamera() — explicit API call.
• Mid-spawn channel binding — the Cam Manager pushes a synchronous SnapCameraNow when a channel target is already present at registration time. See Cam Manager.

SnapCameraNow vs QueueSnapCamera

Input integration sub-gate

Body stages that drive pose from input (notably DynamicOrbitBody) integrate input on the same predicate, mirrored into CameraContext:

integrateInput = ctx.hasFocus || ctx.alwaysUpdate || ctx.blendingOut

The body still polls the input reader every tick regardless of integrateInput — the poll drains Delta-mode buffers so they don’t accumulate during dormancy. The integration result is discarded when !integrateInput.

Staged Poses

The pipeline produces three pose snapshots per tick:

Three snapshots exist because consumers vary. A Unit that uses camera-forward to drive movement input should query GetStablePose — querying GetFinalPose would let the noise stage drag the character around.

The component also caches a pivot each tick (m_cachedPivot) resolved from the Aim stage’s state.lookAtPoint, falling back to the target’s world position. The Cam Core queries this via GetCameraPivot to drive orbital blend shapes.

Setup

1. Create an entity and add GS_PhantomCameraComponent.
2. Set the Priority value. Higher values take precedence within the channel.
3. Configure FOV, near clip, and far clip on the lens fields.
4. Assign a Cam Target entity (the follow target). Leave empty to inherit the channel target from the Cam Manager.
5. From the Body type-picker, slot a body stage. Configure its target mode, offset, and damping halflife.
6. From the Aim type-picker, slot an aim stage. Configure its target mode, offset, and damping halflife.
7. Optionally add Additive stages — noise, impulse, tug listeners, collision reposition.
8. Set the Channel Scope (Local is the default and almost always correct).
9. Place the entity in your scene or inside a rig prefab. The component registers with the Cam Manager automatically on activation.

For a full walkthrough, see the PhantomCam Set Up Guide.

PhantomCamData Structure

The PhantomCamData structure holds the lens and priority configuration for a phantom camera. Stages are stored separately on the component.

Follow / look-at offsets, damping halflives, and target modes now live on the stages, not on PhantomCamData.

API Reference

Request Bus: PhantomCameraRequestBus

Commands sent to a specific phantom camera. ById bus — addressed by entity ID, single handler per address.

Lifecycle

Priority and target

Snap

Staged pose accessors

Impulse

Inheritance forwarders

Blend-out lifecycle

Camera Behavior Types

Retired components. ClampedLook_PhantomCamComponent, StaticOrbit_PhantomCamComponent, and Track_PhantomCamComponent no longer exist as separate components. Their behavior is now provided by stage variants on the base GS_PhantomCameraComponent. Legacy URLs for these subpages redirect to the matching stage docs.

AlwaysFaceCameraComponent

A billboard helper component. Keeps the attached entity always facing the active camera. This is not a phantom camera type itself but a utility for objects that should always face the viewer (UI elements in world space, sprite-based effects, etc.). Unchanged by the refactor.

Usage Examples

Switching Cameras by Priority

To make a specific phantom camera dominant, raise its priority above all others:

#include <GS_PhantomCam/Cameras/GS_PhantomCameraBus.h>

GS_PhantomCam::PhantomCameraRequestBus::Event(
    myCameraEntityId,
    &GS_PhantomCam::PhantomCameraRequests::SetCameraPriority,
    100);

Disabling the Current Camera

Disable the current dominant camera to let the next-highest priority camera take over:

GS_PhantomCam::PhantomCameraRequestBus::Event(
    currentCameraEntityId,
    &GS_PhantomCam::PhantomCameraRequests::DisableCamera);

Triggering a Camera Impulse

Fire all ImpulseNoise additives on the active cam at a strength scaled by distance:

const float strength = AZ::GetClamp(1.0f - distance / radius, 0.0f, 1.0f);
GS_PhantomCam::PhantomCameraRequestBus::Event(
    activeCameraEntityId,
    &GS_PhantomCam::PhantomCameraRequests::TriggerCameraImpulse,
    strength);

Script Canvas

Enabling and disabling a phantom camera:

Getting a phantom camera’s data:

Extending Phantom Cameras

Most camera customization now happens by authoring a new stage variant rather than subclassing the component. Stages are reflected polymorphic types — derive from IBodyStage, IAimStage, or IAdditiveStage, register with AZ_RTTI + AZ_CLASS_ALLOCATOR, and reflect under the base interface’s class hierarchy. The editor type-picker discovers the new variant automatically.

Use the PhantomCamera ClassWizard template to generate a new camera component when you need component-level customization (rare) — see GS_PhantomCam Templates.

Header (.h)

#pragma once
#include <GS_PhantomCam/Cameras/GS_PhantomCameraBus.h>
#include <Source/Cameras/GS_PhantomCameraComponent.h>

namespace MyProject
{
    class MyCustomCam : public GS_PhantomCam::GS_PhantomCameraComponent
    {
    public:
        AZ_COMPONENT_DECL(MyCustomCam);

        static void Reflect(AZ::ReflectContext* context);
    };
}

Implementation (.cpp)

#include "MyCustomCam.h"
#include <AzCore/Serialization/SerializeContext.h>

namespace MyProject
{
    AZ_COMPONENT_IMPL(MyCustomCam, "MyCustomCam", "{YOUR-UUID-HERE}");

    void MyCustomCam::Reflect(AZ::ReflectContext* context)
    {
        if (auto serializeContext = azrtti_cast<AZ::SerializeContext*>(context))
        {
            serializeContext->Class<MyCustomCam, GS_PhantomCam::GS_PhantomCameraComponent>()
                ->Version(0);

            if (AZ::EditContext* editContext = serializeContext->GetEditContext())
            {
                editContext->Class<MyCustomCam>("My Custom Camera", "Custom phantom camera component")
                    ->ClassElement(AZ::Edit::ClassElements::EditorData, "")
                        ->Attribute(AZ::Edit::Attributes::Category, "MyProject")
                        ->Attribute(AZ::Edit::Attributes::AppearsInAddComponentMenu, AZ_CRC_CE("Game"));
            }
        }
    }
}

For stage-level extension (the more common case), see the Stage Pipeline reference.

See Also

For related PhantomCam components:

• Cam Manager
• Cam Core
• Stage Pipeline
• Channels & Instancing
• Blend Profiles
• Camera Influence Fields
• Group Targets
• State Inheritance

For conceptual overviews and usage guides:

• GS_PhantomCam Overview
• The Basics: Phantom Cameras
