Camera Input Reader

The Camera Input Reader translates GS_InputProfile events into per-tick yaw / pitch deltas for the DynamicOrbitBody Body stage. It subclasses GS_Core::GS_InputReaderComponent (inherits profile binding, channel filtering, deadzone handling) and publishes results on the OrbitInputProvider bus that the orbit body polls each tick.

It mirrors the GS_PlayerControllerInputReaderComponent pattern from gs_unit: the parent resolves which named events to fire; the subclass routes those events to the system that consumes them.

Contents

• OrbitInputProvider Bus
• Per-Axis Input Style
• Authored Fields
• Runtime State
• Event Handling
• Poll Handling
• ResetPendingInput Invariant
• DynamicOrbitBody Consumption
• Sensitivity vs Halflife vs Speed
• Authoring Workflow
• See Also

OrbitInputProvider Bus

The Camera Input Reader implements OrbitInputProvider on the cam’s entity address. The DynamicOrbitBody binds to this bus at first Evaluate and polls it every tick.

class OrbitInputProvider : public AZ::EBusTraits
{
public:
    using BusIdType = AZ::EntityId;
    static const AZ::EBusAddressPolicy AddressPolicy = AZ::EBusAddressPolicy::ById;
    static const AZ::EBusHandlerPolicy HandlerPolicy = AZ::EBusHandlerPolicy::Single;

    virtual void GetOrbitInputDelta(float& outYawDelta, float& outPitchDelta) const = 0;
    virtual void ResetPendingInput() = 0;
};

Per-entity addressed, single-handler. The reader component must live on the cam entity (or a child whose ancestor walk resolves to the cam) so the bus address matches ctx.camEntityId.

Per-Axis Input Style

Each axis (yaw, pitch) authors an independent style. The reader handles the two source semantics differently:

A reader can mix styles — joystick yaw + mouse pitch, for example — by setting m_yawStyle = Axis and m_pitchStyle = Delta.

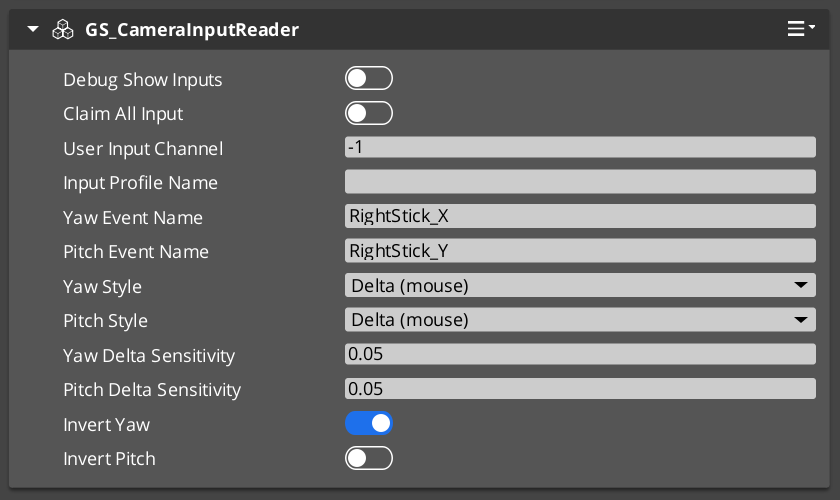

Authored Fields

GS_InputProfile asset assignment is inherited from GS_InputReaderComponent — author the profile separately and reference it in the component’s standard input-profile slot.

Runtime State

mutable float m_pendingYaw   = 0.0f;
mutable float m_pendingPitch = 0.0f;

mutable so the const GetOrbitInputDelta override can reset Delta-mode buffers on poll. Axis-mode buffers are written from HandleFireInput and read back unchanged.

Event Handling

When an InputProfile event fires:

HandleFireInput(eventName, value):
    if eventName == m_yawEventName:
        v = m_invertYaw ? -value : value
        if m_yawStyle == Axis:
            m_pendingYaw = v                              // last-write-wins
        else /* Delta */:
            m_pendingYaw += v * m_yawDeltaSensitivity     // accumulate

    elif eventName == m_pitchEventName:
        v = m_invertPitch ? -value : value
        if m_pitchStyle == Axis:
            m_pendingPitch = v
        else /* Delta */:
            m_pendingPitch += v * m_pitchDeltaSensitivity

Poll Handling

When the body polls the bus:

GetOrbitInputDelta(out outYawDelta, out outPitchDelta):
    outYawDelta   = m_pendingYaw
    outPitchDelta = m_pendingPitch

    if m_yawStyle   == Delta:  m_pendingYaw   = 0.0      // drain on read
    if m_pitchStyle == Delta:  m_pendingPitch = 0.0

Axis-mode buffers are NOT drained on poll — the body’s next tick reads the same held value (consistent with “held stick = continuous rotation”). Delta-mode buffers are drained because mouse-rest must mean no rotation.

ResetPendingInput Invariant

ResetPendingInput():
    m_pendingYaw   = 0.0
    m_pendingPitch = 0.0

Called by the DynamicOrbitBody when ctx.snapThisFrame == true. Critical for cams with alwaysUpdate = false:

When such a cam is dormant, mouse motion still accumulates into m_pendingYaw / m_pendingPitch via Delta-mode event handling (the input profile keeps firing). Without the snap-time reset, the cam would “burst” all the accumulated input the moment it became active.

This is defense-in-depth paired with the per-tick drain. The body polls every tick (regardless of whether it integrates the result), so Delta buffers don’t accumulate while the cam ticks but is dormant. ResetPendingInput clears any stragglers at the moment activation snap occurs.

See Phantom Cameras — Execution States for the dormancy + reactivation lifecycle.

DynamicOrbitBody Consumption

// In DynamicOrbitBody::Evaluate:

// 1. Ensure bus binding.
EnsureBusConnected(ctx.camEntityId);

// 2. Poll input deltas every tick (regardless of integration eligibility,
//    so Delta-mode buffers drain whether we integrate or not).
float yawDelta = 0.0f, pitchDelta = 0.0f;
OrbitInputProviderBus::Event(ctx.camEntityId,
    &OrbitInputProvider::GetOrbitInputDelta, yawDelta, pitchDelta);

// 3. Gate integration on input-eligibility predicate.
const bool integrateInput = (ctx.hasFocus || ctx.alwaysUpdate || ctx.blendingOut);

if (integrateInput)
{
    m_targetYaw   += yawDelta   * AZ::DegToRad(m_yawSpeed)   * dt;
    m_targetPitch += pitchDelta * AZ::DegToRad(m_pitchSpeed) * dt;
    // Apply WrapYawToPi + pitch clamp.
}

// 4. On snap: reset reader buffers.
if (ctx.snapThisFrame)
{
    OrbitInputProviderBus::Event(ctx.camEntityId,
        &OrbitInputProvider::ResetPendingInput);
}

Sensitivity vs Halflife vs Speed

A common authoring confusion — three different controls, three different purposes:

Don’t conflate. Sensitivity controls input mapping; Speed controls rotation amount per input; Halflife controls visual responsiveness.

Authoring Workflow

1. Place GS_CameraInputReaderComponent on the cam entity (or its child — the bus is per-entity addressed, so the entity ID must match ctx.camEntityId, which is the cam entity itself).
2. Assign a GS_InputProfile asset in the parent’s slot (inherited from GS_InputReaderComponent).
3. Author profile events named OrbitYaw and OrbitPitch (or rename the reader’s m_yawEventName / m_pitchEventName to match your profile).
4. Set per-axis style:
   • Mouse-driven cams → both axes Delta. Tune m_*DeltaSensitivity to taste.
   • Joystick-driven cams → both axes Axis. Sensitivity is ignored.
   • Mixed (mouse for yaw, gamepad stick for pitch) → mix as needed.
5. Optionally toggle m_invertYaw / m_invertPitch.

See Also

Consumer:

• Body Stage Variants — DynamicOrbitBody

Related PhantomCam pages:

• Phantom Cameras — Execution States — dormancy / reactivation lifecycle that motivates ResetPendingInput.
• Stage Pipeline — CameraContext — ctx.snapThisFrame and the input-integration gate.

Parent input system:

• GS_InputReader
• GS_InputProfile
