Execution Engines

gs_graphcanvas provides three execution engines — one for each topology. All share a common GraphExecutionContext for variable storage and value resolution, and GraphInstance for creating independent runtime copies.

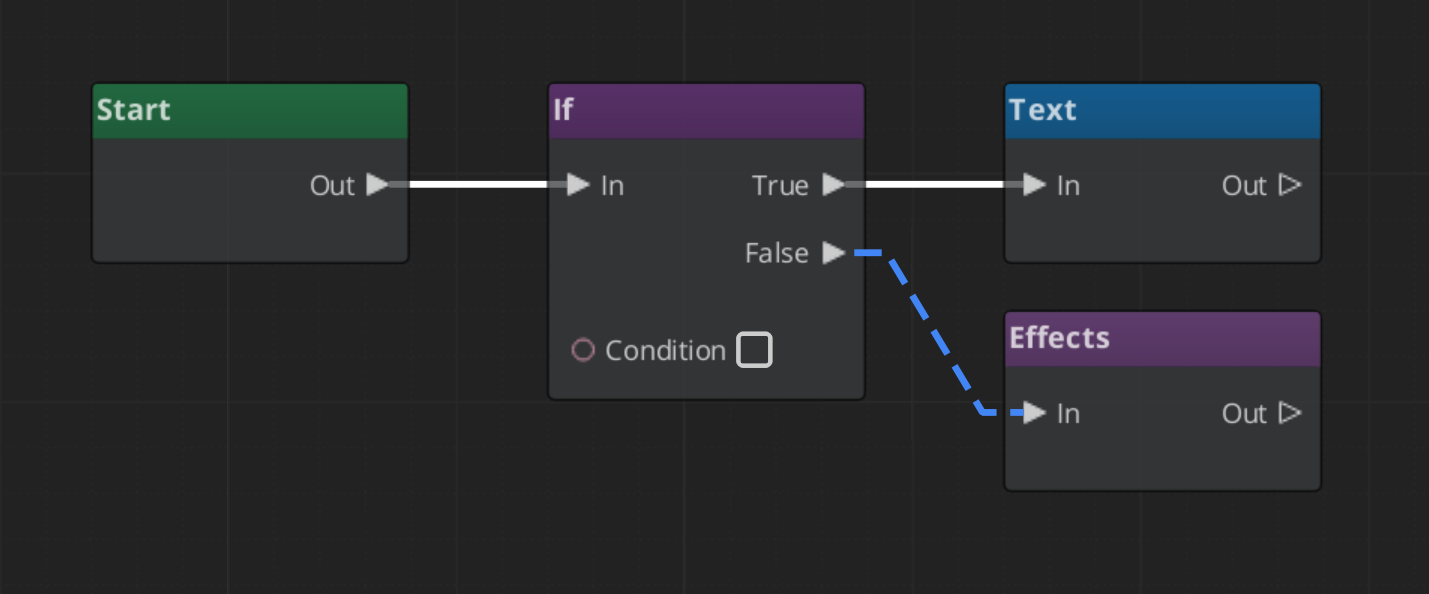

FlowGraphEvaluator

Topology: FlowGraph

Step/wait/resume execution model for sequential graphs. The evaluator follows FlowIn/FlowOut connections from node to node.

Nodes implement the IExecutableNode interface:

FlowResult Execute(GraphExecutionContext& context);

FlowResult controls what happens after a node executes:

Used by: Dialogue Editor — text nodes return Wait while dialogue is displayed, then Resume() advances to the next node.

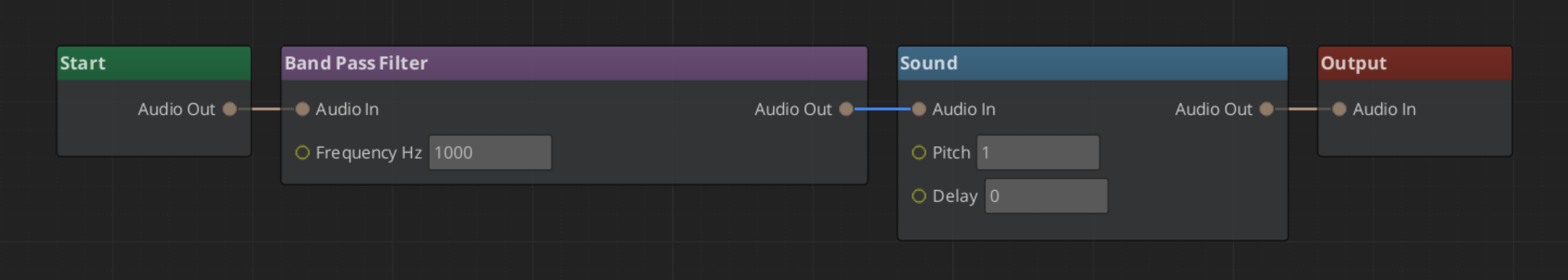

DataFlowGraphEvaluator

Topology: DataFlowGraph

Dirty-propagation evaluator for continuously-evaluated graphs. On initialization, builds a topological ordering of all nodes via Kahn’s algorithm.

Nodes implement the IDataFlowNode interface:

void Process(GraphExecutionContext& context);

Evaluation Pipeline

1. Initialize — Build topological order from the graph’s connection structure
2. Track dependencies — Map which nodes depend on which variables
3. Mark dirty — MarkDirty(variableName) marks dependent nodes dirty, then transitively marks all downstream nodes
4. Evaluate — Iterate nodes in topological order, re-running only dirty nodes

The explicit dirty marking (not automatic) gives downstream code batching control — set multiple variables, then call Evaluate() once.

Empty Any Pattern

When a data-flow node has no valid output (gated off, no valid input), it must output AZStd::any{} (truly empty), never a default-constructed value:

if (validInput)
    context.SetOutputValue(this, "result", computedValue);
else
    context.SetOutputValueAny(this, "result", AZStd::any{});

This is critical because multi-input resolution returns the first non-empty AZStd::any. A default-constructed struct inside an any is non-empty and will mask valid values from other connections.

Used by: Audio Event Graph — entry gate nodes, filter nodes, and effect nodes all follow this pattern.

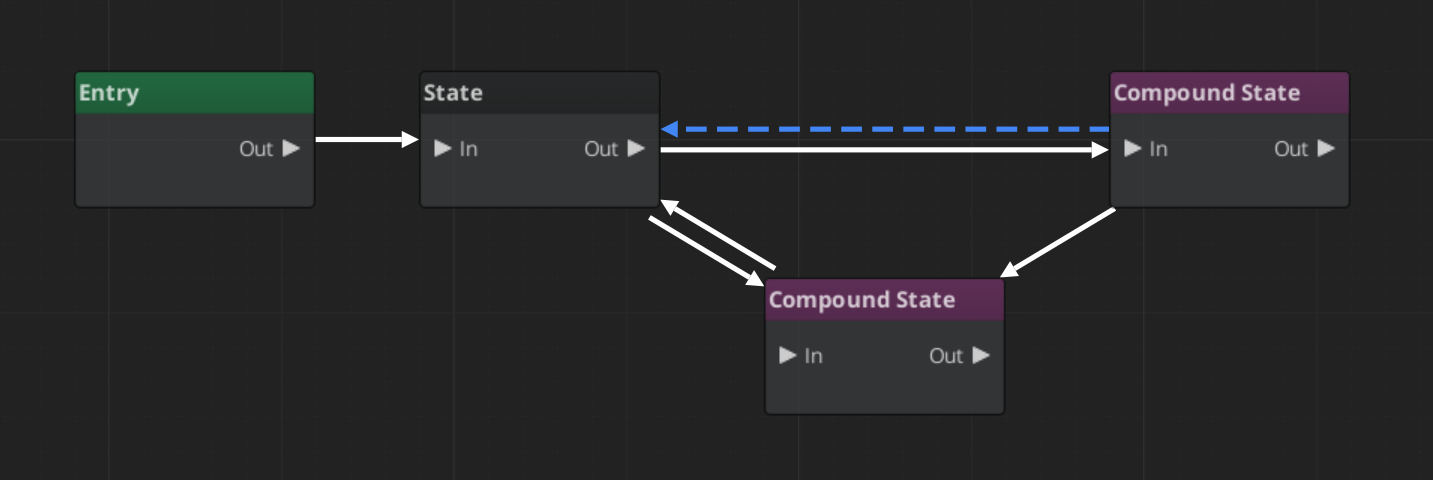

StateMachineEvaluator

Topology: StateMachineGraph

Tick-based evaluator for hierarchical finite state machines. Maintains the current active state and evaluates transitions each tick.

Nodes implement the IStateMachineNode interface:

void OnEnter(GraphExecutionContext& context);
void OnTick(GraphExecutionContext& context, float deltaTime);
void OnExit(GraphExecutionContext& context);

Tick Cycle

1. Increment __stateTime auto-variable
2. Gather all outgoing transitions from the current state
3. Evaluate conditions on each transition
4. Fire the highest-priority valid transition (OnExit on source, OnEnter on destination)
5. Call OnTick on the active state

Transition Conditions

Each connection carries a TransitionDescriptor with a priority and a list of polymorphic TransitionCondition objects. Built-in conditions:

Custom conditions are created by subclassing TransitionCondition, reflecting it, and it auto-discovers via SerializeContext::EnumerateDerived().

ParallelLayerEvaluator

Wraps multiple StateMachineEvaluator instances (one per layer) with shared context synchronization. Each layer evaluates independently but shares the same variable context for cross-layer reads.

Used by: Unit Action Graph — parallel Movement, Action, and Rotation layers.

GraphExecutionContext

Shared context for all evaluator types. Provides:

• Input value resolution — GetInputValue<T>() and GetInputValueAny() with multi-input resolution (returns first non-empty value)
• Output values — SetOutputValue() and SetOutputValueAny()
• Blackboard — Variable storage by name
• Binding initialization — InitializeBindings() resolves VariableId references to variable names

GraphInstance

An independent runtime copy of a graph. GraphInstance::CreateFromAsset() deserializes a fresh graph from a GraphDocumentAsset’s byte buffer, initializes variables and bindings. Each instance is fully independent — downstream gems can pool instances for high-frequency execution paths.
