Savers

The base class for entity-level save handlers — override BuildSaveData() and ProcessLoad() to persist any component data automatically.

Tags:

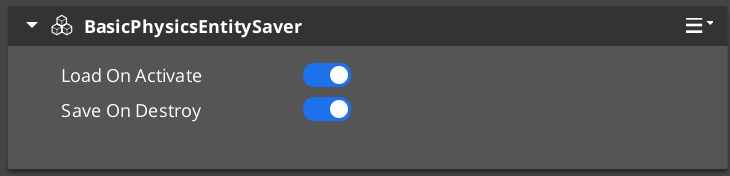

Image showing the Basic Physics Saver component, an example of a Saver-inherited class, as seen in the Entity Inspector.

Overview

The GS_SaverComponent is the base class for all entity-level save handlers. By extending it, you can create companion components that save and load data alongside your entities, or inherit directly into gameplay components for built-in persistence (as done by GS_Inventory).

Savers automatically participate in the global save/load cycle — when the Save Manager broadcasts OnSaveAll or OnLoadAll, every active Saver component responds by gathering or restoring its data.

How It Works

Save Cycle

When a save event fires (global OnSaveAll, local trigger, or saveOnDestroy):

BeginSave() — Primes the save data container.
BuildSaveData() — Your override. Gather your component’s data and write it into localData using the Save Manager’s JSON allocator.
CompleteSave() — Submits the data to the Save Manager via SaveData(uniqueName, localData).

Load Cycle

When a load event fires (global OnLoadAll or loadOnActivate):

LoadLocalData() — Retrieves this Saver’s data block from the Save Manager via LoadData(uniqueName, outData).
ProcessLoad() — Your override. Read the retrieved data and restore your component’s state.

Automatic Identity

Each Saver generates a unique save key from the entity name and GetSubComponentName(). This ensures multiple Savers on different entities (or multiple Saver types on the same entity) don’t collide.

Setup

Attach a Saver component (built-in or custom) to any entity that needs to persist data.
Configure the Saver properties:
- Load On Activate — restore data automatically when the entity spawns.
- Save On Destroy — save data automatically when the entity is destroyed.
Ensure the Save Manager is set up and running (it handles the file I/O).

Inspector Properties

Property	Type	Default	Description
Load On Activate	`bool`	`true`	Automatically loads and restores this Saver’s data when the component activates. Useful for entities that spawn mid-game and need to resume their saved state.
Save On Destroy	`bool`	`true`	Automatically saves this Saver’s data when the component is destroyed. Ensures data is captured even if a global save hasn’t been triggered.

API Reference

Global Event Handlers

These are called automatically when the Save Manager broadcasts global save/load events. Override to customize behavior.

Method	Description
`OnSaveAll()`	Called when the Save Manager broadcasts a global save. Default implementation calls the full save cycle (BeginSave → BuildSaveData → CompleteSave).
`OnLoadAll()`	Called when the Save Manager broadcasts a global load. Default implementation calls the full load cycle (LoadLocalData → ProcessLoad).

Save Methods

Override these to control how your component’s data is saved.

Method	Description
`BeginSave()`	Prepares the save data container. Called before `BuildSaveData()`.
`BuildSaveData()`	Your primary override. Write your component’s data into `localData` using the JSON allocator.
`CompleteSave()`	Submits `localData` to the Save Manager. Called after `BuildSaveData()`.

Load Methods

Override these to control how your component’s data is restored.

Method	Description
`LoadLocalData()`	Retrieves this Saver’s data block from the Save Manager into `localData`.
`ProcessLoad()`	Your primary override. Read `localData` and restore your component’s state.

Utility Methods

Method	Returns	Description
`SetUniqueName()`	`void`	Generates the unique save key from the entity name and sub-component name. Override for custom key generation.
`GetSubComponentName()`	`AZStd::string`	Returns `"Saver"` by default. Override to distinguish multiple Saver types on the same entity.

Components

Pre-built Saver components included in GS_Core:

Component	Saves	Documentation
BasicEntitySaverComponent	Entity Transform (position, rotation)	List of Savers
BasicPhysicsEntitySaverComponent	Entity Transform + Rigidbody (position, rotation, linear velocity, angular velocity)	List of Savers
RecordKeeperComponent	Key-value records (string → integer)	Record Keeper

Usage Examples

Responding to Global Save/Load Events

If your component doesn’t extend GS_SaverComponent but still needs to react to save/load events, connect to the SaveManagerOutgoingEventBus:

#include <GS_Core/GS_CoreBus.h>

class MyComponent
    : public AZ::Component
    , protected GS_Core::SaveManagerOutgoingEventBus::Handler
{
protected:
    void Activate() override
    {
        GS_Core::SaveManagerOutgoingEventBus::Handler::BusConnect();
    }

    void Deactivate() override
    {
        GS_Core::SaveManagerOutgoingEventBus::Handler::BusDisconnect();
    }

    void OnSaveAll() override
    {
        // Gather and submit data to the Save Manager
    }

    void OnLoadAll() override
    {
        // Retrieve and restore data from the Save Manager
    }
};

Extending the Saver Class

Create a custom Saver whenever you need to persist component-specific data that the built-in savers don’t cover.

Header (.h)

#pragma once
#include <Source/SaveSystem/GS_SaverComponent.h>

namespace MyProject
{
    class MyEntitySaverComponent
        : public GS_Core::GS_SaverComponent
    {
    public:
        AZ_COMPONENT_DECL(MyEntitySaverComponent);

        static void Reflect(AZ::ReflectContext* context);

    protected:
        // Saver overrides
        void BuildSaveData() override;
        void ProcessLoad() override;
        AZStd::string GetSubComponentName() const override { return "MyEntitySaver"; }
    };
}

Implementation (.cpp)

#include "MyEntitySaverComponent.h"
#include <AzCore/Serialization/SerializeContext.h>
#include <GS_Core/GS_CoreBus.h>

namespace MyProject
{
    AZ_COMPONENT_IMPL(MyEntitySaverComponent, "MyEntitySaverComponent", "{YOUR-UUID-HERE}",
        GS_Core::GS_SaverComponent);

    void MyEntitySaverComponent::Reflect(AZ::ReflectContext* context)
    {
        if (auto serializeContext = azrtti_cast<AZ::SerializeContext*>(context))
        {
            serializeContext->Class<MyEntitySaverComponent, GS_Core::GS_SaverComponent>()
                ->Version(0);

            if (AZ::EditContext* editContext = serializeContext->GetEditContext())
            {
                editContext->Class<MyEntitySaverComponent>(
                    "My Entity Saver", "Saves custom entity data")
                    ->ClassElement(AZ::Edit::ClassElements::EditorData, "")
                        ->Attribute(AZ::Edit::Attributes::Category, "MyProject")
                        ->Attribute(AZ::Edit::Attributes::AppearsInAddComponentMenu, AZ_CRC_CE("Game"));
            }
        }
    }

    void MyEntitySaverComponent::BuildSaveData()
    {
        // Get the JSON allocator from the Save Manager
        rapidjson::Document::AllocatorType* allocator = nullptr;
        GS_Core::SaveManagerIncomingEventBus::BroadcastResult(
            allocator,
            &GS_Core::SaveManagerIncomingEventBus::Events::GetAllocator
        );

        if (!allocator) return;

        // Write your data into localData (inherited member)
        localData.SetObject();
        localData.AddMember("myValue", 42, *allocator);
        localData.AddMember("myFlag", true, *allocator);

        // Example: save a string
        rapidjson::Value nameVal;
        nameVal.SetString("hello", *allocator);
        localData.AddMember("myString", nameVal, *allocator);
    }

    void MyEntitySaverComponent::ProcessLoad()
    {
        // Read your data from localData (populated by LoadLocalData)
        if (localData.HasMember("myValue"))
        {
            int myValue = localData["myValue"].GetInt();
            // ... restore state ...
        }

        if (localData.HasMember("myFlag"))
        {
            bool myFlag = localData["myFlag"].GetBool();
            // ... restore state ...
        }
    }
}

Module Registration

m_descriptors.insert(m_descriptors.end(), {
    MyProject::MyEntitySaverComponent::CreateDescriptor(),
});

Attach your custom Saver to any entity that needs persistence. The save/load cycle handles the rest automatically.
